Performance
The Boosted Low Speed Torque control system effectively regulates the engines’ air/fuel ratio for maximum torque.
Honda BF60
Quality performance
Honda BF60

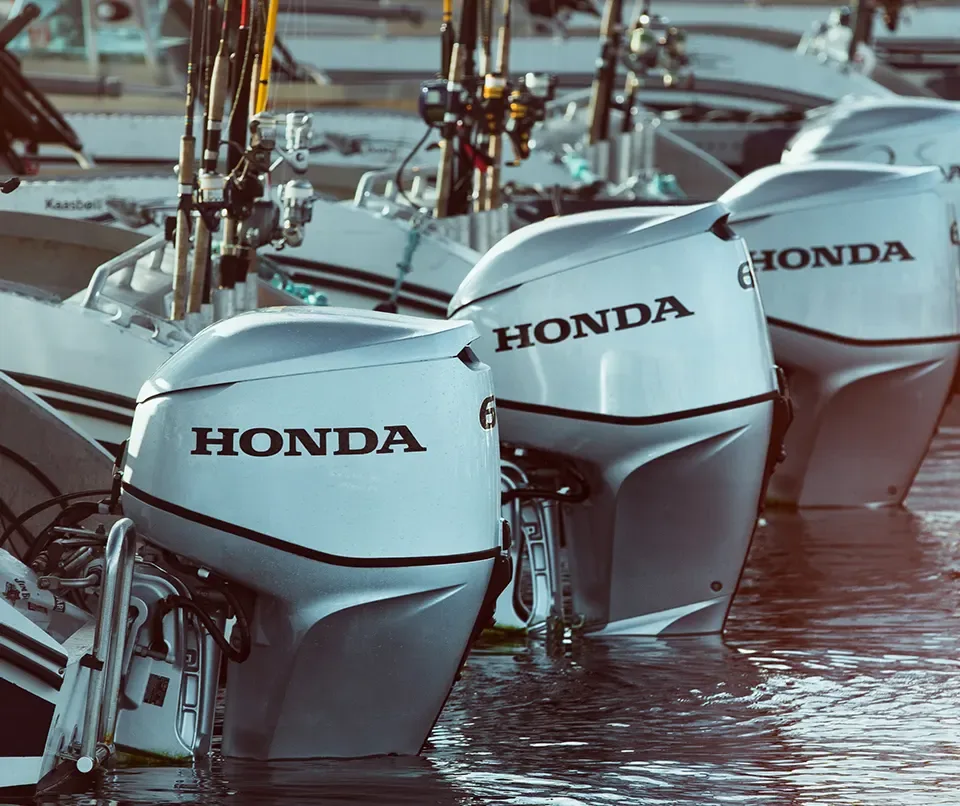

Honda's brand new BF60 outboard engine features the new generation 'Wedge Shape' design, making it the lightest and quietest in its class.
Features
Efficiency
The Honda BF60’s Lean Burn control adjusts the air/fuel mixture for maximum fuel efficiency at cruising speeds
Design
Weighing just 110kg, the newly designed, water cooled outboard engine is the lightest in its class.
Specifications
Please select a model from the drop-down(s) below to view the specifications.
Compare up
to 3 models
BF60
Engine
| Engine | Manual |
| Type | 4-Stroke Inline 3-Cylinder |
| Displacement (cc) | 998 |
| Bore and Stroke (mm) | 73 x 79.5 (2.87 x 3.13") |
| Full Throttle RPM Range (rpm) | 5000-6000 |
| Rating At Prop shaft (HP) | 60@5500RPM |
| Induction Scavenging | SOHC |
| Valves per cylinder | 4 |
| Fuel Delivery | Programmed Fuel Injection |
| Ignition System | Microcomputer Programmed |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Cooling System | Water Cooled |
| Alternator (Electric) | 22A |
| Alternator (Manual) | N/A |
| Trim Range (degrees) | -4º to 16º |
| Tilt Range (degrees) | 3 Stage: 7°, 13°, 21° |
Drive
| Drive | Manual |
| Gear Ratio | 2.07:1 |
| Gear Shift | F-N-R |
| Propeller | Optional |
Dimensions And Weights
| Dimensions And Weight | Manual |
| Recommended Transom Height (S) (mm) | N/A |
| Recommended Transom Height (L) (mm) | 521 (20") |
| Recommended Transom Height (X) (mm) | 648 (25") |
| Recommended Transom Height (XX) (mm) | |
| Dry Weight (S) (kg) | N/A |
| Dry Weight (L) (kg) | 108 (239lbs) |
| Dry Weight (X) (kg) | 115 (253lbs) |
| Dry Weight (XX) (kg) | N/A |
| Dry Weight Tiller (S) (Manual) (kg) | N/A |
| Dry Weight Tiller (S) (Electric) (kg) | N/A |
| Dry Weight Tiller (L) (Manual) (kg) | N/A |
| Dry Weight Tiller (L) (Electric) (kg) | N/A |
| Dry Weight RC (S) (kg) | N/A |
| Dry Weight RC (L) (kg) | N/A |
| Dry Weight RC (X) (kg) | N/A |
| Dry Weight Power Tilt (S) (kg) | N/A |
| Dry Weight Power Tilt (L) (kg) | N/A |
