TRX420FA6

The Honda TRX420FA6 offers ultimate driving performance mixed with tough durability. Its rugged frame and forgiving suspension make it a comfortable ride no matter the terrain. Purchase this model, and enjoy free rider training. Find a dealer and book a test ride now!

Features and Style

Design

The ultra-low first gear with a super-heavy-duty automatic clutch offers a low engagement point for excellent driveability and towing capability.

Performance

The TRX420FA6’s liquid-cooled, fuel-injected OHV single-cylinder engine allows direct driveshaft alignment for maximum drivetrain efficiency.

Handling

The rugged frame and suspension provide exceptional ground clearance for tackling the toughest terrain while maintaining precise handling.

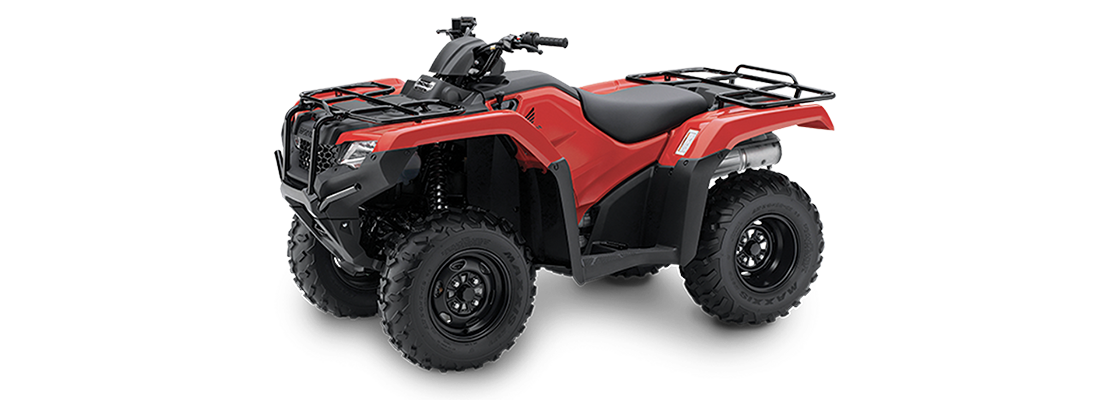

Make it your own

Honda South Africa
Patriot Red
Metallic

Models & Pricing

0

Specifications

Please select a model from the drop-down(s) below to view the specifications.

Compare up
to 3 models
TRX420FA6 - TRX420FA6 20YM
Download PDF
General
Warranty6 months6 months6 months
Service Intervals100 hours100 hours100 hours
0 - 100 km/h (sec)---
Dimensions and Weights
Claimed KERB Weight265265197
Length (mm)210521051905
Width (mm)120312031034
Height (mm)116311631069
Seat height (mm)855855792.5
Rake/Trail (°/mm)---
Wheel Base127012701130
Drive
DriveShaftShaftDirect rear driveshaft
Front SuspensionIndependent double-wishbone; 160mm inches travelIndependent double-wishbone; 160mm inches travelIndependent double-wishbone; 13 cm. travel
Rear SuspensionIndependent double-wishbone; 160mm inches travelIndependent double-wishbone; 160mm inches travelSwingarm with single shock; 124.5mm travel
Engine
Tank Capacity (l)13.313.39.1
StarterElectric with optional auxiliary recoilElectric with optional auxiliary recoilElectric with optional auxiliary recoil
Engine ConfigurationLiquid-cooled OHV semi-dry-sump longitudinally mounted single-cylinder four-strokeLiquid-cooled OHV semi-dry-sump longitudinally mounted single-cylinder four-strokeair-cooled OHV longitudinally mounted single-cylinder four-stroke
Cylinders111
Valves per CylinderN/AN/A-
Capacity420420229
Power (KW)---
Torque (NM)---
GearboxAutomaticAutomaticESP five-speed with Reverse and Automatic clutch
Safety
Brakes"(f) Dual hydraulic disc (r) Single hydraulic disc""(f) Dual hydraulic disc (r) Single hydraulic disc""(f) Dual sealed hydraulic drum (r) Sealed mechanical drum"
Styling
Frame MaterialSteelSteelSteel
Wheels
Tyres Front24 x 8-1224 x 8-1222 x 7-11
Tyres Rear24 x 10-1124 x 10-1122 x 10-9
WheelsSteelSteelSteel
Standard Available Accessories
Luggage---
Maintenance---
Comfort---
Utility---
